ROOF GARDENS - GREEN ROOF - INSULATED INVERTED ROOF

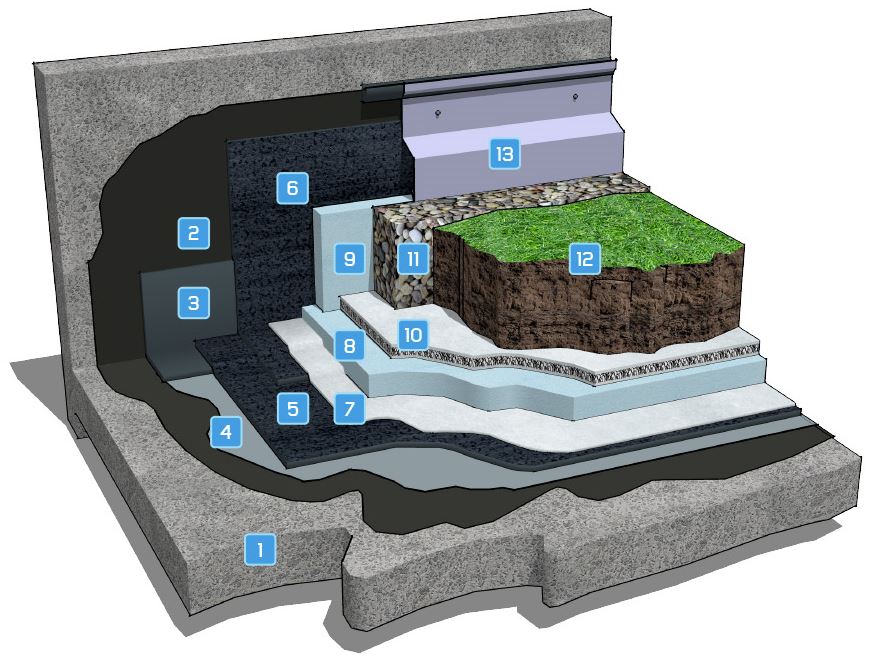

Roof gardens - Green roof - Insulated inverted roof,

1 Support: Concrete

2 Priming coat: !Primertec AD

3 Double reinforced corner: with membrane BPP P 4 mm > di 250 mm

4 Adhesive, connecting and sectoring element: !Pratiko Adesivo

5 Waterproofing element: Pratiko P+V Parking

6 Double reinforced corner: Pratiko P+V Parking

7 Draining element: Geotextile

8 Thermal insulating element: XPS

9 Perimeter protection element: XPS

10 Filtrating anti-puncture element: Geo-composite drainage

11 Release element: Round gravel

12 Roof garden: Terrain + extensive vegetation

13 Finishing element: Metal flashing expansion joint with mechanical fixings and seal with !Pratiko Mastic
